• agile
• chief information officer
• computer-aided software engineering (CASE)
• dynamic system development method (DSDM)
• end user
• free/libre open source software (FLOSS)
• free/open source software (F/OSS or FOSS)
• health management information system
• hospital information system (HIS)
• information technology (IT)
• integration
• interoperability
• iteration
• milestone
• MoSCoW
• object-oriented systems development (OOSD)
• open source software (OSS)
• prototype
• rapid application development (RAD)
• rapid prototyping
• repository
• Scrum
• Scrum master
• Scrum team
• systems development life cycle (SDLC)
• TELOS strategy
• total cost of ownership (TCO)
• waterfall model

The following case scenario describes the development of rural clinics with an integrated data collection and processing system demonstrating the need to have all stakeholders involved from the beginning to the end of a systems development life cycle (SDLC). Creating the right team to manage system development is key. Various methodologies have been developed to guide this process. This chapter reviews the following approaches to the SDLC: waterfall; rapid prototyping, or rapid development (RAD); object-oriented system development (OOSD); dynamic system development method (DSDM); and agile. When reading about each approach, think about the case scenario and how important it is to understand the specific situational needs and the various methodologies for bringing a system to life. As in the case scenario described later, it is generally necessary or beneficial to use a hybrid approach that blends two or more models for a robust development process.

As the case demonstrates, the process of developing systems, or the SDLC, is an ongoing development with a life cycle. The first step in developing a system is to understand the problems, or business needs. This step is followed by understanding the solution, or how to address those needs; developing a plan; implementing the plan; evaluating the implementation; and, finally, performing plan maintenance, plan review, and system destruction. If a system needs major upgrading outside the scope of the maintenance phase or needs to be replaced because of technological advances or the business needs change, a new project is launched, the old system is destroyed, and the life cycle begins anew.

The SDLC is a way to deliver efficient and effective information systems (ISs) that fit with the strategic business plan of the organization, which stems from its mission. In the world of health care, the development of the IS includes a needs assessment of the entire organization, which should include outreach linkages (as seen in the case scenario) and partnerships and merged or shared functions. The organization's participating physicians and other ancillary professionals and their offices are included in a thorough needs assessment. When developing a strategic plan, the design must consider the existence of the organization within the larger healthcare delivery system and assess the various factors outside of the organization itself, including technological, legislative, and environmental issues, that affect the organization. The plan must identify the needs of the organization as a whole and propose solutions to meet those needs or a way to address the issues.

The SDLC can occur within an organization or be outsourced or be a blend of the two approaches. With outsourcing, the team hires an outside organization to carry out all or some of the development. Developing systems that truly meet business needs is not an easy task and is quite complex. Therefore, it is common to run over budget and miss milestones. When reading this chapter, reflect on the case scenario and, in general, the challenges teams face when developing systems.

The waterfall model is one of the oldest methods and literally depicts a waterfall effect; that is, the output from each previous phase flows into or becomes the initial input for the next phase. This model is a sequential development process in that there is one pass through each component activity from conception, or feasibility, through implementation in a linear order. The deliverables for each phase result from the inputs and any additional information that is gathered. There is minimal or no iterative development where one takes advantage of what was learned during the development of earlier deliverables. Many projects are broken down into six phases (Figure 9-1), especially small to medium-size projects.

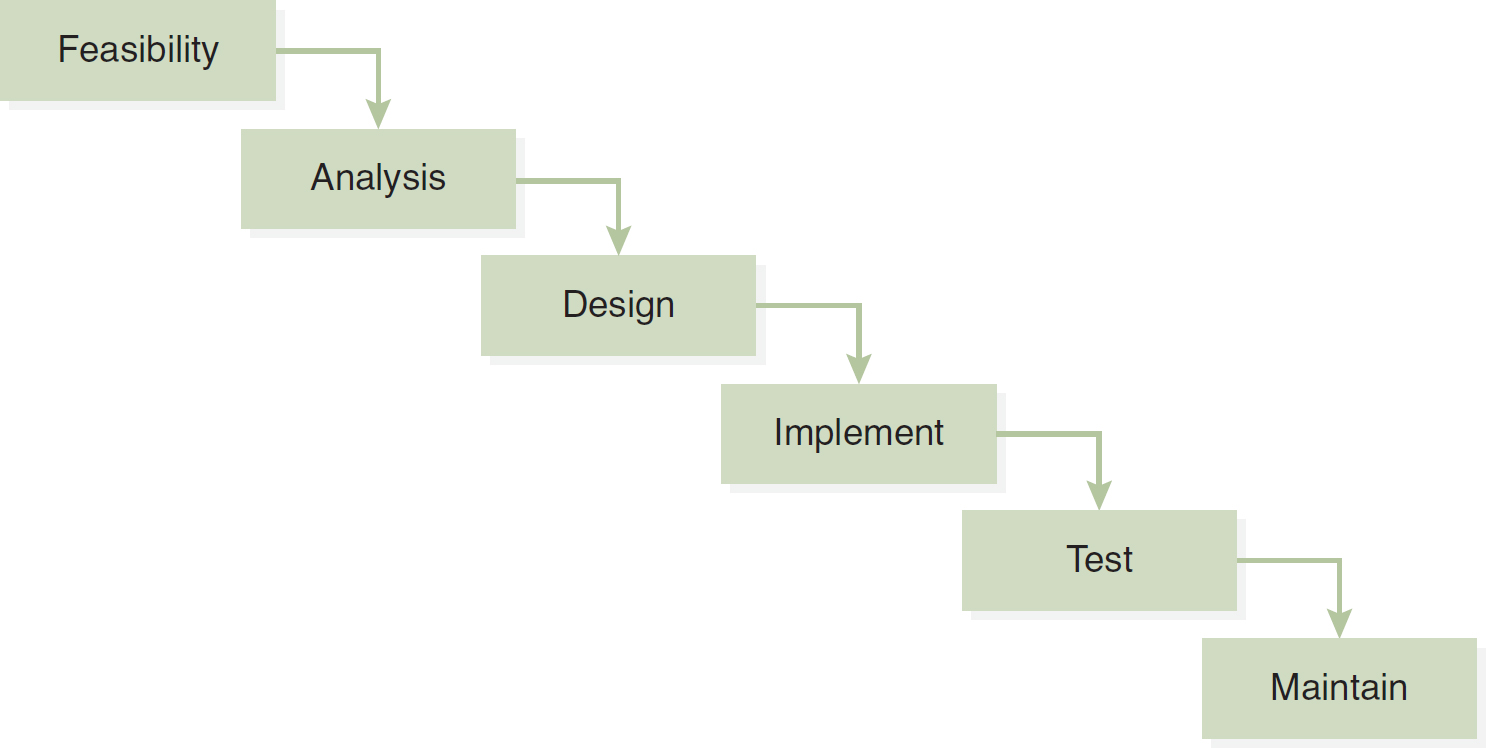

Figure 9-1 Waterfall Phases

A flow diagram depicting the sequence of waterfall phases includes feasibility, analysis, design, implementation, testing, and maintenance.

Feasibility

As the term implies, the feasibility study is used to determine whether the project should be initiated and supported. This study should generate a project plan and an estimated budget for the SDLC phases. Often, the TELOS strategy (i.e., technological and systems, economic, legal, operational, and schedule feasibility) is followed. Technological and systems feasibility addresses the issues of technological capabilities, including the expertise and infrastructure needed to complete the project. Economic feasibility is determined by performing a cost-benefit analysis, which weighs the benefits versus the costs to determine whether the project is fiscally possible and worth undertaking. Formal assessments should include a return on investment. Legal feasibility assesses the legal ramifications of the project, including current contractual obligations, legislation, regulatory bodies, and liabilities that could affect the project. Operational feasibility determines how effective the project will be in meeting the needs and expectations of the organization and actually achieving the goals of the project or addressing and solving the business problem. Schedule feasibility assesses the viability of the time frame, making sure it is a reasonable estimation of the time and resources necessary for the project to be developed in time to attain the benefits and meet constraints. The TELOS strategy helps to provide a clear picture of the feasibility of the project.

Analysis

During the analysis phase, the requirements for the system are teased out from a detailed study of the business needs of the organization. As part of this analysis, workflows and business practices are examined. It may be necessary to consider options for changing the business process.

Design

The design phase focuses on high- and low-level design and interface and data design. At the high-level phase, team members establish which programs are needed and ascertain how they will interact. At the low-level phase, team members explore how the individual programs will actually work. The interface design determines what the look and feel will be, or what the interfaces will look like. During data design, the team critically thinks about and verifies which data are required or essential.

The analysis and design phases are vital in the development cycle, and great care is taken during these phases to ensure that the software's overall configuration is defined properly. Mock-ups or prototypes of screenshots, reports, and processes may be generated to clarify the requirements and get the team or stakeholders on the same page, limiting the occurrence of glitches that might result in costly software development revisions later in the project.

Implement

During this phase, the designs are brought to life through programming code. The right programming language, such as C++, Pascal, and Java, is chosen based on the application requirements.

Test

The testing is generally broken down into five layers: (1) the individual programming modules, (2) integration, (3) volume, (4) the system as a whole, and (5) beta testing. Typically, the programs are developed in a modular fashion, and the individual modules are then subjected to detailed testing. The modules are subsequently synthesized, and the interfaces between the modules are tested. The system is evaluated regarding its platform and the expected volume of data. It is then tested as a complete system by the team. Finally, to determine whether the system performs appropriately for the user, it is beta tested. During beta testing, users put the new system through its paces to make sure that it does what they need it to do to perform their jobs.

Maintain

Once the system has been finalized from the testing phase, it must be maintained. This could include user support through actual software changes necessitated through use or time.

This model is sequential, with five common stages that must be completed before the next sequential stage begins (Adobe Communications Team, 2022; Isaias & Issa, 2015). This could be considered a disadvantage to system development since no projects are static and changes typically occur during the SDLC. As requirements change, there is no way to address them formally using the waterfall model after project requirements are developed. The waterfall model should be used for simple projects when the requirements are well known and stable from the outset.

As technology advances and faster development is expected, rapid prototyping, also known as rapid application development (RAD), provides a fast way to add functionality through prototyping and user testing. It is easier for users to examine an actual prototype than documentation. A rapid requirements-gathering phase relies on workshops and focus groups to build a prototype application using real data. This prototype is then beta tested with users, and their feedback is used to perfect or add functionality and capabilities to the system (Figure 9-2).

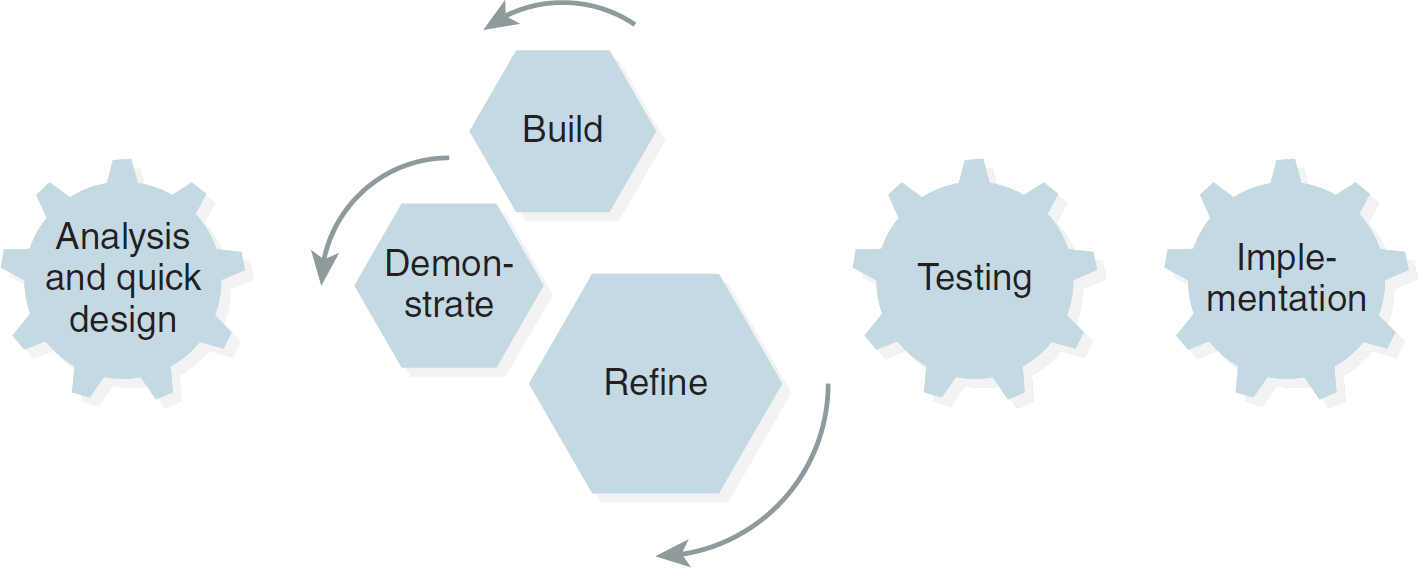

Figure 9-2 Rapid Prototyping, or Rapid Application Development (RAD)

An illustration depicting rapid prototyping includes analysis and quick design; build, demonstrate, refine; testing; and implementation.

According to Alexandrou (2023), “RAD proposes that products can be developed faster and of higher quality” (para. 1). The RAD approach uses informal communication, repurposes components, and typically follows a fast-paced schedule. Object-oriented programming, using languages such as C++ and Java, promotes software repurposing and reuse.

The major advantage of RAD is the speed with which the system can be deployed; a working, usable system can be built within 3 months. The use of prototyping allows the developers to skip steps in the SDLC process in favor of getting a mock-up in front of the user. At times, the system may be deemed acceptable if it meets a predefined minimum set of requirements rather than all of the identified requirements. This rapid deployment also limits the project's exposure to change elements. Unfortunately, the fast pace can be its biggest disadvantage in some cases. Once one is locked into a tight development schedule, the process may be too fast for adequate testing to be put in place and completed. The most dangerous lack of testing is in the realm of security.

The RAD approach is chosen because it builds systems quickly through user-driven prototyping and adherence to quick, strict delivery milestones. This approach continues to be refined and honed, and other contemporary manifestations of RAD continue to emerge in the agile software development realm.

The object-oriented systems development (OOSD) model blends SDLC logic with object-oriented modeling and programming power to apply object-oriented concepts to all the stages of the SDLC (GeeksforGeeks, 2022; Stair & Reynolds, 2016). It is a method of contemplating and reflecting on problems using models organized around real-world concepts or objects. Object-oriented modeling represents real-world objects by modeling the real-world entities or things (e.g., clinic, patient, account, or nursing or healthcare professional) into abstract computer software objects. Once the system is object oriented, all the interactions or exchanges take place between or among the objects. The objects are derived from classes, and each object comprises data and the actions that can be enacted on that data. Class hierarchy allows objects to inherit attributes from parent classes, which fosters object reuse and results in less coding. The object-oriented programming languages, such as C++ and Java, promote software repurposing and reuse. Therefore, the class hierarchy must be clearly and appropriately designed to reap the benefits of this SDLC approach, which uses object-oriented programming to support the interactions of objects.

For example, in the case scenario, a system could be developed for Wellness Alliance to manage the community health programming for the clinic system being set up for outreach. There could be a class of programs, and well-baby care could be an object in the class of programs; programs is a relationship between Wellness Alliance and well-baby care. The program class has attributes, such as clinic site, location address, or attendees or patients. The relationship itself may be considered an object having attributes, such as pediatric programs. The class hierarchy from which all the system objects are created with resultant object interactions must be clearly defined.

The OOSD model is a highly iterative approach. The process begins by investigating where object-oriented solutions can address business problems or needs; determining user requirements; designing the system; programming or modifying object modeling (i.e., class hierarchy and objects); and implementing, testing, modifying, and reimplementing the system and ends with the new system being reviewed regularly at established intervals and modifications being made as needed throughout its life.

The dynamic system development method (DSDM) is a very iterative and incremental approach with a high level of user input and involvement. The iterative process requires repetitive examination that enhances detail and improves accuracy. The DSDM has three phases: (1) preproject, (2) project life cycle (i.e., feasibility and business studies, functional model iteration, design and build iteration, and implementation), and (3) postproject.

In the preproject phase, buy-in is established and funding is secured. This helps to identify the stakeholders (i.e., administration and end users) and gain support for the project. In the second phase, the project's life cycle begins. This phase includes five steps: (1) feasibility, (2) business studies, (3) functional model iteration, (4) design and build iteration, and (5) implementation (Figure 9-3).

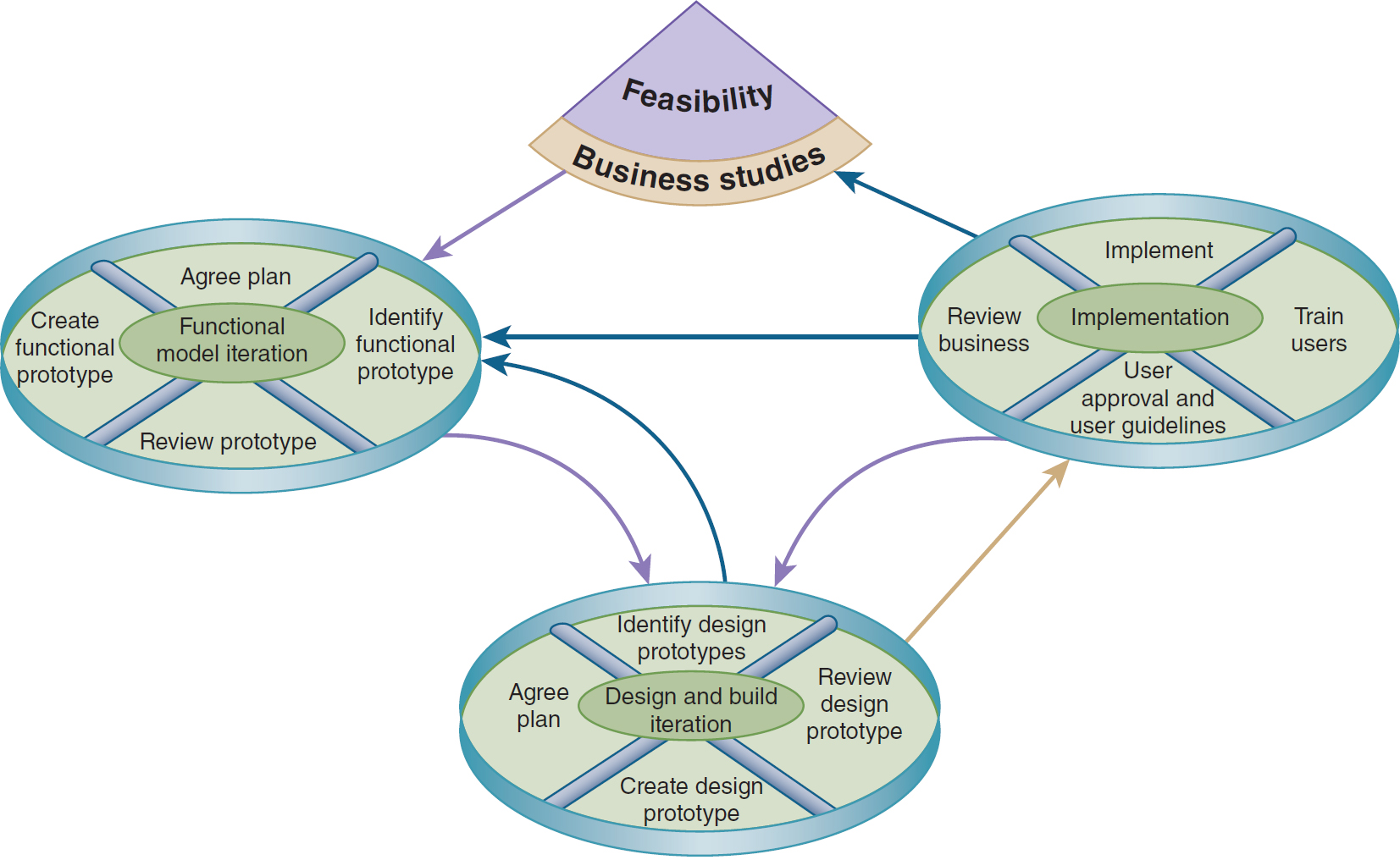

Figure 9-3 Dynamic System Development Method (DSDM)

An illustration depicts the phases of the dynamic system development method.

The phases of D S D M include: 1. Feasibility. 2. Business studies. 3. Functional model iteration involving creating a functional prototype, agreeing on a plan, identifying the prototype, and reviewing it. 4. Design and build iteration involving agreeing on a plan, identifying design prototypes, reviewing the design prototype, and creating design prototype. 5. Implementation involving reviewing the business, implementing, training users, obtaining user approval, and establishing user guidelines.

Copyright 2014 Agile Business Consortium Limited. Reproduced by kind permission.

In steps 1 and 2, the feasibility and business studies are completed. The team ascertains whether this project meets the required business needs while identifying the potential risks during the feasibility study. In step 1, the deliverables are a feasibility report, project plan, and risk log. Once the project is deemed feasible, step 2, the business study, is begun. The business study extends the feasibility report by examining the processes and the stakeholders' needs. It is important to align the stakeholders with the project and secure their buy-in because it is necessary to have user input and involvement throughout the entire DSDM process. Therefore, bringing them in at the beginning of the project is imperative.

Using the MoSCoW approach, the team works with the stakeholders to develop a prioritized requirements list and a development plan. MoSCoW stands for “must have, should have, could have, and would have.” The “must have” requirements are necessary to meet the business needs and are critical to the success of the project. The “should have” requirements are those that would be great to have if possible, but the success of the project does not depend on their being addressed. The “could have” requirements are those that would be nice to have met, and the “would have” requirements can be put off until later; these requirements may be undertaken during future developmental iterations. Timeboxing is generally used to develop the project plan. In timeboxing, the project is divided into sections, each having its own fixed budget and milestones for deliverables. The MoSCoW approach is then used to prioritize the requirements within each section; the requirements are the only variables because the schedule and budget are set. If a project is running out of time or money, the team can easily omit the requirements that have been identified as the lowest priority to meet their schedule and budget obligations. This does not mean that the final deliverable, the actual system, would be flawed or incomplete. Instead, because the team has already determined the “must have” or “should have” items, it still meets the business needs. According to Haughey (2021), the 80/20 rule, or Pareto principle, can be applied to nearly everything. The Pareto principle states that 80% of the project comes from 20% of the system requirements; therefore, the 20% of requirements must be the crucial requirements, or those with the highest priority. One must also consider the pancake principle: The first pancake is not as good as the rest, and one should know that the first development will not be perfect. This is why it is extremely important to clearly identify the “must have” and “should have” requirements.

In the third step of the project life cycle phase, known as functional model iteration, the deliverables are a functional model and prototype ready for user testing. This could take several iterations to develop the desired functionality and incorporate the users' input. At this stage, the team should examine the quality of the product and revise the list requirements and risk log. The requirements are adjusted, the ones that have been realized are deleted, and the remaining requirements are prioritized. The risk log is revised based on the risk analysis completed during and after prototype development.

The design and build iteration step focuses on integrating functional components and identifying the nonfunctional requirements that need to be in the tested system. Testing is crucial; the team will develop a system that the end users can safely use on a daily basis. The team will garner user feedback and generate user documentation. These efforts provide this step's deliverable, a tested system with documentation for the next and final phase of the development process.

In the final step of the project life cycle phase, known as implementation, deliverables are the system (ready to use), documentation, and trained users. The requirements list should be satisfied along with the users' needs. Training users and implementing the approved system are the first part of this phase, and the final part consists of a full review. It is important to review the effect of the system on the business processes and determine whether it addresses the requirements established at the beginning of the project. This final review determines whether the project is completed or if further development is necessary. If further development is needed, the preceding phases are revisited. If the project is complete and satisfies the users, then it moves into maintenance and ongoing development.

The final phase is labeled postproject. In this phase, the team verifies that the system is functioning properly. Once verified, the maintenance schedule begins. Because the DSDM is iterative, this postproject phase is seen as ongoing development, and any of the deliverables can be refined. This is what makes the DSDM such an iterative development process.

DSDM is one of an increasing number of agile methodologies being introduced, such as Scrum and Extreme Programming. Refer to the following information on the agile method. These new approaches address the organizational, managerial, and interpersonal communication issues that often bog down SDLC projects. Empowerment of teams and user involvement enhance the iterative and programming strengths provided in these SDLC models.

The agile method is different from other approaches to software development since the focus is on “the people doing the work and how they work together. Solutions evolve through collaboration between self-organizing cross-functional teams utilizing the appropriate practices for their context” (Agile Alliance, n.d., para. 7). The agile software development approach merges iterative and incremental process models whereby the product is broken into small incremental builds on which the teams work in short bursts, such as 2- to 4-week intervals, to accomplish their tasks. Failure is considered positive if you fail fast and fail often to get to your goal. This method lends itself well to smaller projects and rapidly delivers functional software to the customer; this quick turnaround enhances customer satisfaction.

Scrum is an agile strategy that emphasizes collaboration, team autonomy, or self-management and flexibility to adapt to emerging business realities. This strategy organizes software developers into a team called a Scrum team to reach a common goal of creating market-ready products and services using iterative development cycles. As a framework, it can manage complex knowledge work. Scrum defines roles, procedures, and tools to guarantee the delivery of an effective and efficient product. The three foundational concepts of Scrum are adaptation, transparency, and inspection. The Scrum master is the agile servant-leader project manager who facilitates the work performed by the Scrum team; this leader is responsible for removing barriers and obstacles so that tasks may be completed for the team to achieve its goals. The Scrum master must support the Scrum team and facilitate its ability to self-manage and self-organize. Since this is a highly collaborative process, the Scrum master must also establish and ensure a positive environment that is open to discussion and sharing of ideas. In addition, the Scrum master must assess and monitor Scrum team interactions with those outside of the team to determine which exchanges with the Scrum team are beneficial and which are not in order to maximize the value generated by the Scrum team (i.e., shielding the Scrum team from distractions and work interruptions). The Scrum master guides, protects, coaches, facilitates, and develops the Scrum team to reach its goals of producing high-quality products and service deliverables.

When reviewing the SDLC, the computer-aided software engineering (CASE) tools that will be used must be described.

CASE is the methodical application of a set of tools that promote adherence to the SDLC process by automating several required tasks, which provides standardization and thoroughness to the total systems to develop quality software systems that are free of defects (Stair & Reynolds, 2016; Waghmare, 2023; Wikibooks.org, 2018). These tools help to reduce cost and development time while enriching the quality of the product. CASE tools contain a repository with information about the system: models, data definitions, and references that link models together. Repositories are valuable in their ability to make sure the models follow diagramming rules and are consistent and complete.

The various types of tools can be referred to as upper-CASE or lower-CASE tools. The upper-CASE tools support the analysis and design phases, whereas the lower-CASE tools support implementation. The tools can also be general or specific in nature, with the specific tools being designed for a particular methodology.

Two examples of CASE tools are Visible Analyst and Rational Rose (IBM, 2021). According to Andoh-Baidoo et al. (2009), Visible Analyst “supports structured and object-oriented design (UML)” (p. 372). Rational Rose supports solely object-oriented design (UML), allowing for “side-by-side comparison between the Rose diagrams and the equivalent diagrams in the new Rational UML modeling products” (IBM, 2021, para. 3). Both tools can “build and reverse database schemas for SQL and Oracle” and “support code generation for pre-.NET versions of Visual Basic” (p. 372). Visible Analyst can also support shell code generation for pre-.NET versions of C and COBOL, whereas Rational Rose can support complete code for C++ and Java. In addition, Andoh-Baidoo et al. (2009) found that Rational Rose “[p]rovides good integration with Java, and incorporates common packages into class diagrams and decompositions through classes” (p. 372).

CASE tools have many advantages, including decreasing development time and producing more flexible systems. On the downside, they can be difficult to customize and use with existing systems.

Another area that must be discussed with the SDLC is open source software (OSS), free/libre open source software (FLOSS), and free/open source software (F/OSS or FOSS). There are two political camps in the free software community: the free software movement and open source. According to Stallman (2021),

Interoperability, which is the ability to share information across organizations, remains paramount under the HITECH Act. The ability to share patient data is extremely important, both within an organization and across organizational boundaries (Figure 9-4).

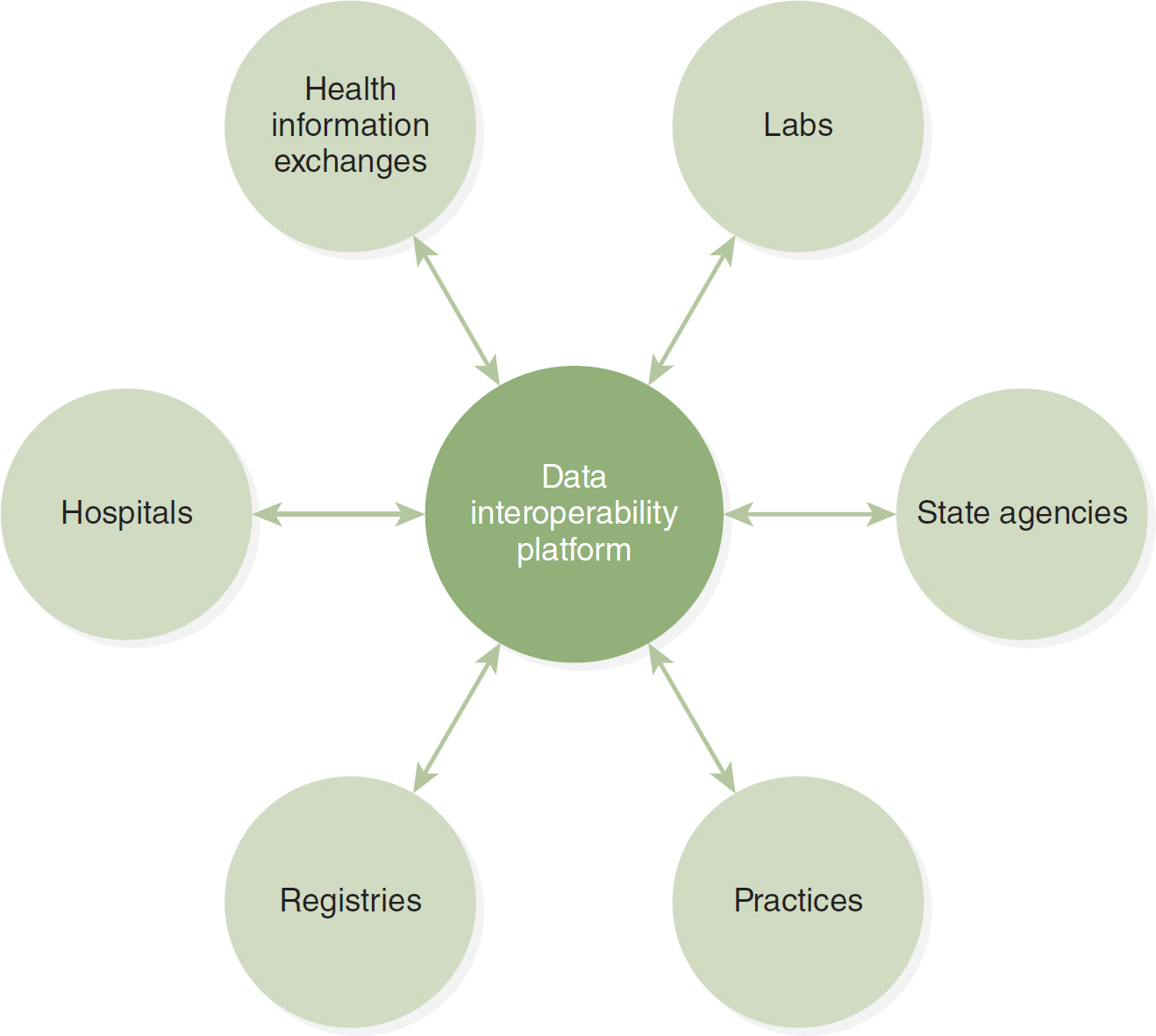

Figure 9-4 Interoperability

A data interoperability platform includes health information exchanges, labs, state agencies, practices, registries, and hospitals.

According to the Health Information and Management Systems Society (HIMSS; n.d.), there are standards, implementation specifications, and standards-development organizations. These various types of organizations are working to support the development of systems that can seamlessly exchange and use health data. Few healthcare systems take advantage of the full potential of the current state of the art in computer science and health informatics (HIMSS, n.d.). The consequences of this situation include a drain on financial resources from the economy, the inability to truly mitigate the occurrence of medical errors, and a lack of national preparedness to respond to natural and man-made epidemics and disasters. HIMSS created the Integration and Interoperability Steering Committee to guide the industry on allocating resources to develop and implement the standards and technology needed to achieve interoperability.

As we enter into the SDLC, we must be aware of how this type of development will affect both our own healthcare organization and the healthcare delivery system as a whole. In an ideal world, we would all work together to create systems that are integrated within our own organization while having the interoperability to cross organizational boundaries and unite the healthcare delivery system to realize the common goal of improving the quality of care provided to consumers.

At times during the SDLC, new information affects the outputs from earlier phases; the development effort may be reexamined or halted until these modifications can be reconciled with the current design and scope of the project. At other times, teams are overwhelmed with new ideas from the iterative SDLC process that result in new capabilities or features that exceed the initial scope of the project. Astute team leaders will preserve these ideas so that they can be considered at a later time. The team should develop a list of recommendations to improve the current software when the project is complete. This iterative and dynamic exchange makes the SDLC robust.

As technology and research continue to advance, new SDLC models are being pioneered and revised to enhance development techniques. The interpretation and implementation of any model selected reflect the knowledge and skill of the team applying the model. The success of the project is often directly related to the quality of the organizational decision-making throughout the project-that is, how well the plan was followed and documented. United efforts to create systems that are integrated and interoperable will define the future of health care.
